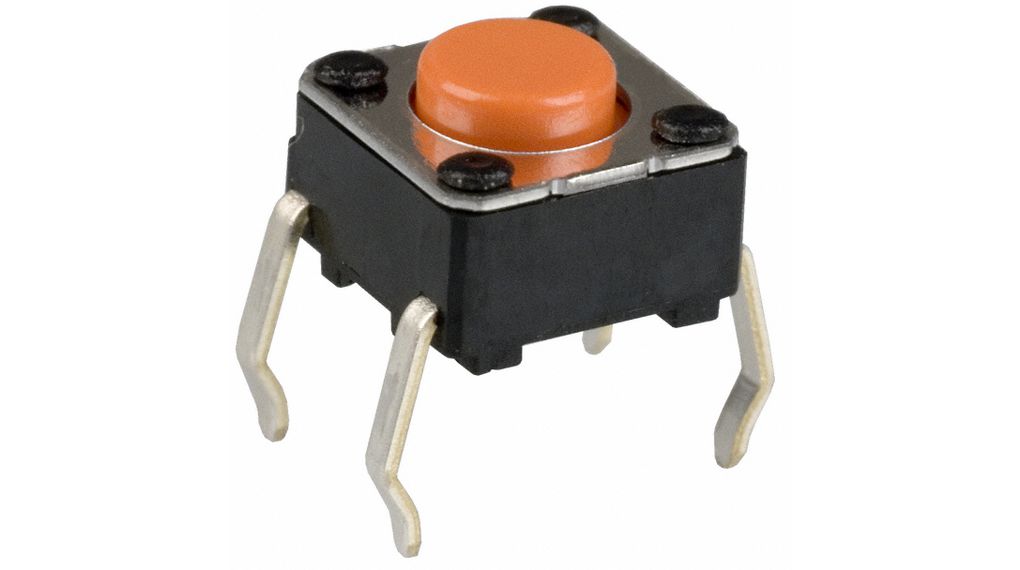

B3F 12*12*7.3 Push Button Switch cap CAP24

DescriptionThis is a tactile push button cap designed for push button with the dimension 12*12*7.3 mm in different colors. Description1. The rated range: 50 ma 12 VDC 2. Contact resistance: 50 m Ω Max (initial) 3. The insulation resistance: 100 m Ω minDC (250 v) 4. The compressive strength: AC250V (50/60 hz for 1 minute) 5. Mechanical life: 100000 cycles 6. The environment temperature: 25 ° ~ 105 ° 7. The operating strength: 180/250 (plus or minus 30 gf) 8. 12 * 12 * 7.3 round convex type
